Custom Clustering via HTML

Important

The features described on this page require DIALS >= 3.28.0. They are not available in earlier versions of DIALS.

xia2.multiplex outputs an HTML file summarising the outcome of the multi-crystal analysis (xia2.multiplex.html). In xia2.multiplex.html, a range of intensity-based clustering graphs are produced. For help interpreting these plots, see this clustering tutorial. For coordinate clustering, it is possible that you may want a cluster scaled and merged that is not automatically identified. For hierarchical clustering, it is possible, but fiddly to set the command-line parameters to output the cluster you want. It is now possible to select clusters from xia2.multiplex.html to simplify this process.

Overview

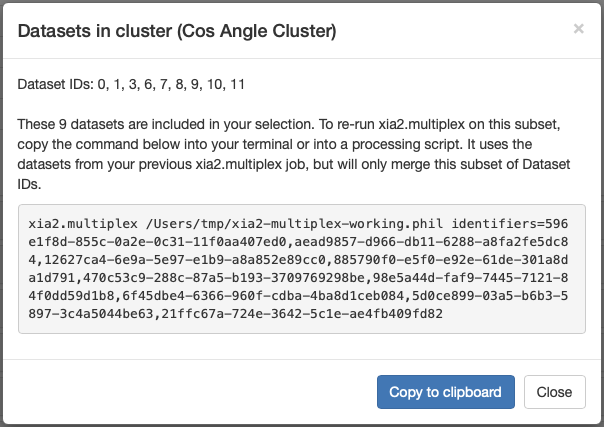

By interacting with the intensity-based clustering graphs as described below, a pop-up box will appear in your web browser. This will provide a multiplex input command. To scale and merge the cluster you selected, all you need to do is paste this command into your terminal and run it. This will run a multiplex job to scale and merge this subset of data only. This command specifies the sub-set of datasets from your selection, and uses the xia2-multiplex-working.phil file to configure multiplex in the same way as the original job. This means you do not need to specify the input files again, as they are imported from xia2-multiplex-working.phil. Note that this will not provide side-by-side comparison of data quality statistics as you would get if you selected clusters via the command-line.

../_images/multiplex_html_popup.png

Coordinate Clustering

For the coordinate-based clustering method, you have two ways of selecting a custom cluster of data.

  1. The Cosym Coordinates Rotated by Principal Components plot

  2. The OPTICS Reachability plot

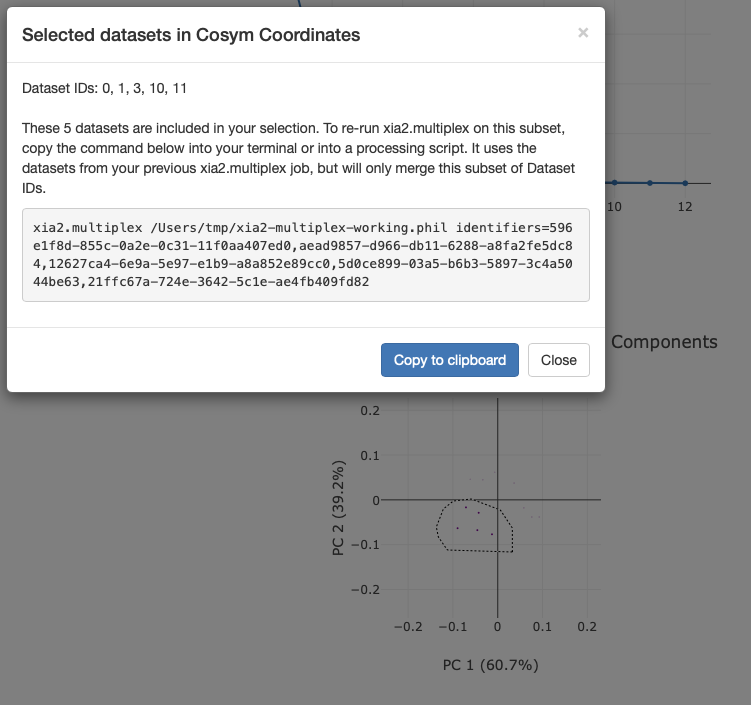

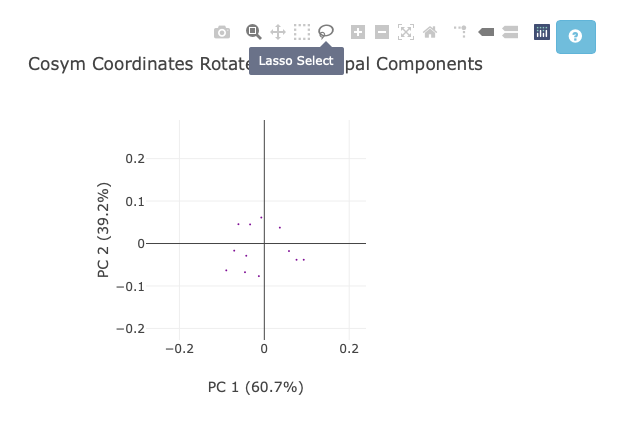

For the coordinate plot, first zoom in the graph as needed, then click the lasso selection tool. Next, draw around the data you would like scaled and merged together. This will trigger the multiplex command pop up.

../_images/multiplex_html_coordinate_lasso.png ../_images/multiplex_html_coordinate_selected.png

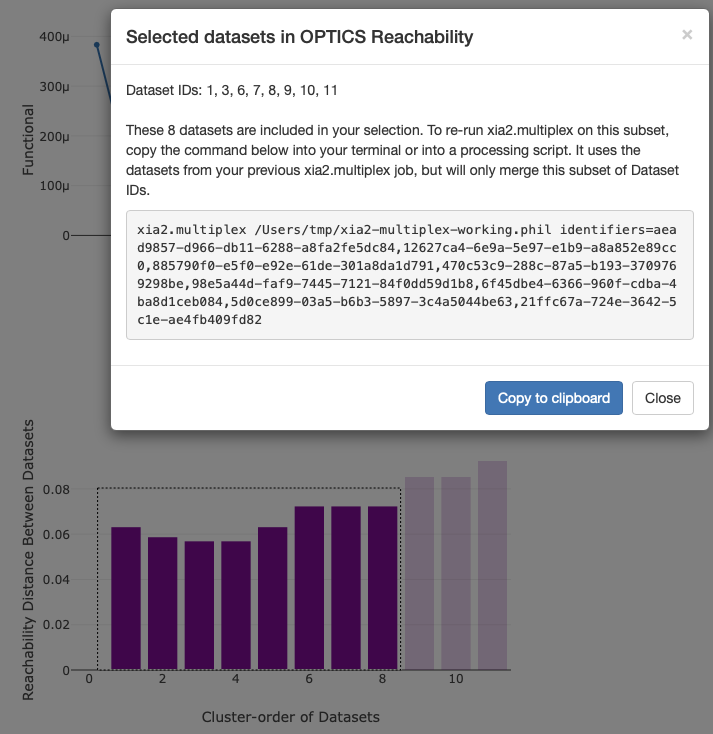

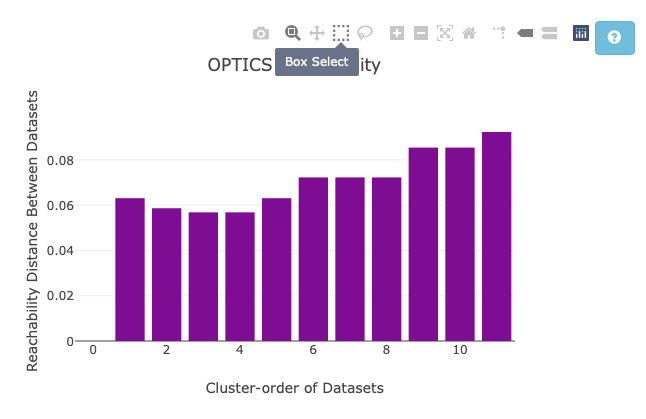

For the reachability plot, you can also use the lasso tool, but may find the box selection tool easier. Once again, draw around the datasets you would like scaled and merged.

../_images/multiplex_html_reachability_box.png ../_images/multiplex_html_reachability_selected.png

Hierarchical Clustering

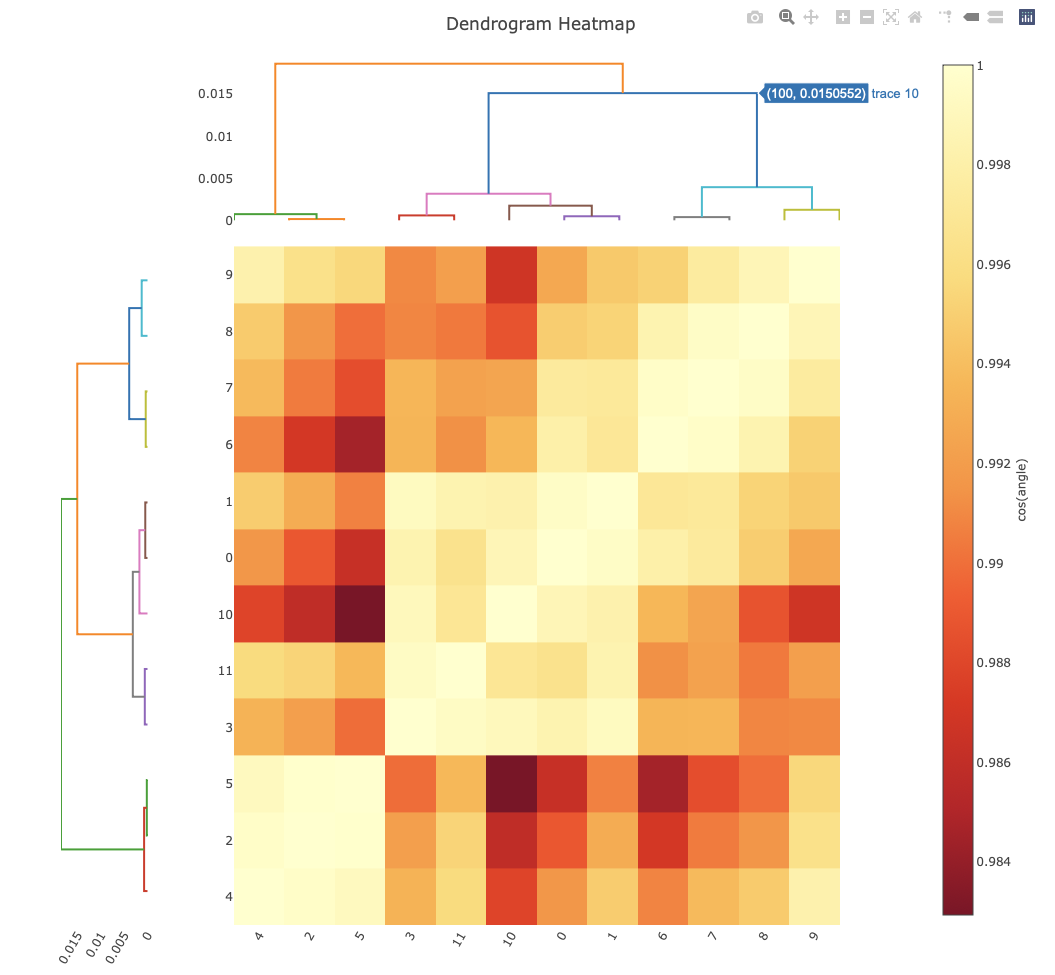

For both the correlation and cosine angle clustering, simply click on the branch of the dendrogram you would like to output. Make sure the trace label that pops up is the same colour as the branch you have the cursor hovered over. Note that all datasets under the selected branch will be selected. In this example, all datasets except 4, 2, and 5 have been selected.

../_images/multiplex_html_dendrogram.png
